Zamak 27

zamak 27
Project Description

ZnAl27Cu2 / ZA-27 / Zamak 27

Zamak 27

Zamak 27 contains 27% aluminum content and is the strongest of the Zamak series.

zamak 27ZA-27ZnAl27Cu2Zamak 27 / ZnAl27Cu2 / ZA-27

Zamak 27, or zinc aluminum alloy, contains significantly more aluminum than the Zamak group of alloys. The number 27 represents the approximate percentage of aluminum

It is extremely difficult to handle and has poor die filling characteristics, which can be offset by simplifying the casting design.

Zamak 27 is 40% stronger and harder than typical aluminum die cast alloys and also offers bearing properties not seen in other alloys

Zamak 27 has the highest aluminum content, highest strength, highest melting point, and lowest density of the zamak group
This zinc alloy exhibits excellent bearing properties, which allow bearings to be designed into the casting of some applications
Its relatively high casting temperature requires the cold-chamber process
Chemical, Physical and Mechanical Properties

Zamak 27 Chemical Analysis

Analysis  ( %) Zamak 27 / ZnAl27Cu2
Al 25.5 – 28.0
Cu 2.0 – 2.5
Mg 0.012 – 0.020
Pb ≤0.005
Fe ≤0.07
Cd ≤0.005
Sn ≤0.002
Si ≤0.04
Ni ≤0.001

Zamak 27 General Mechanical Properties

Mechanical Properties Metric Value
Ultimate Tensile Strength 421 MPa
Yield Strength 379 MPa
Impact Strength 5 J
Elongation % in 2 1 – 3
Shear Strength 325 MPa
Compressive Yield Strength 385 MPa
Fatigue Strength (reverse bending 5×108cycles) 145 MPa
Hardness 105 – 125 Brinell

Zamak 27 General Physical Properties

Physical Properties Metric Value
Solidification Range (melting range) 376 – 484 C
Density 5.0 kg/dm3
Coefficient of Thermal Expansion 26.0 μm/m-°C
Thermal Conductivity 125.5 W/mK
Specific Heat Capacity 534 J/kg-°C

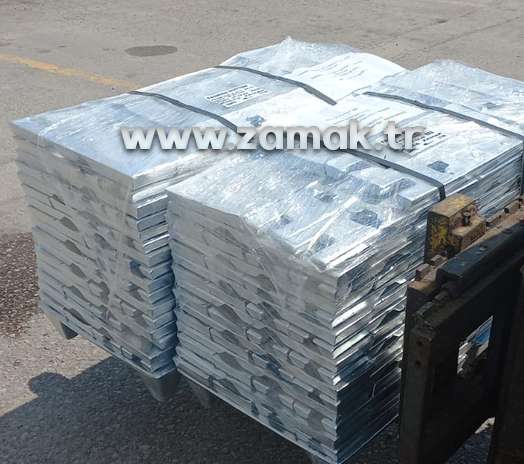

Package

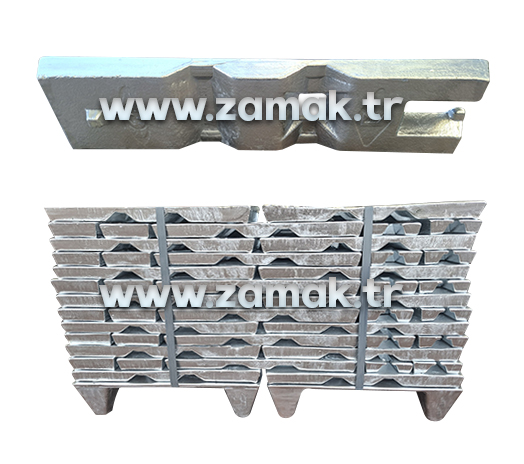

Ingot Weight 7 – 9 kg
Ingot Size ( W x L x H ) 12 x 49 x 3 cm

Packing Weight

Zinc Alloy Feet

 900 – 1200 Kg

Bundle Size ( W x L x H )

Zinc Alloy Feet

 50 x 100 x 60 cm

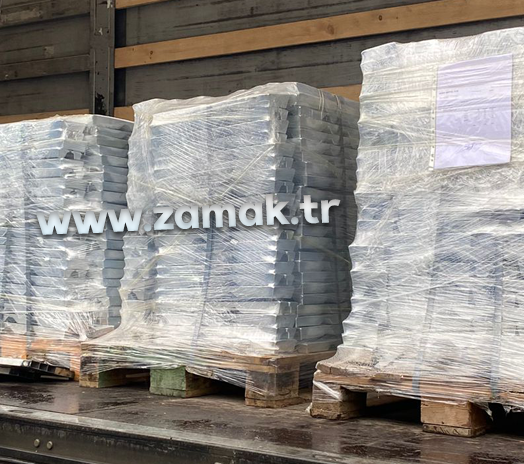

Packing Weight

Euro Pallet

 1500 – 2000 Kg

Pallet Size ( W x L x H )

Euro Pallet

  80  x 120 x 150 cm

Payment

Payment Terms

100% TT ( 30% deposit + 70% before loading )

LC and CAD not accepted
Price

LME + premium



 LME Price will be confirmed after the deposit payment has been confirmed.

For LME official closing price quotation , customer must send information until 2 hours ago before LME closing

After LME price fix, No Change
Price Terms
  1. We prepare pro invoice and customer pay deposit
  2. We produce order in our factory(+- 300kg)
  3. Customer must quote (fix) LME price until loading
  4. We prepare final pro invoice (Net weight and LME price)
  5. Customer pay balance amount.
  6. Customer transport agency can pick up order from our factory for EXW



Delivery

Origin Turkey ( Our production )
Min Order 2 tons
Our Factory Location Kocaeli / Turkey
Delivery Time Depends of quantity
Sea Freight Ports Near Our Factory Evyap Port  / Yilport  /  DPworld Port
